ActionStep: Call rest API

Allows you to send or retrieve data from an external service using HTTP. The external service can be secured or unsecured using Basic Authentication.



Configure External Data Sources

In order to use the Call REST API action, you must first configure External Data Sources in the administration panel:

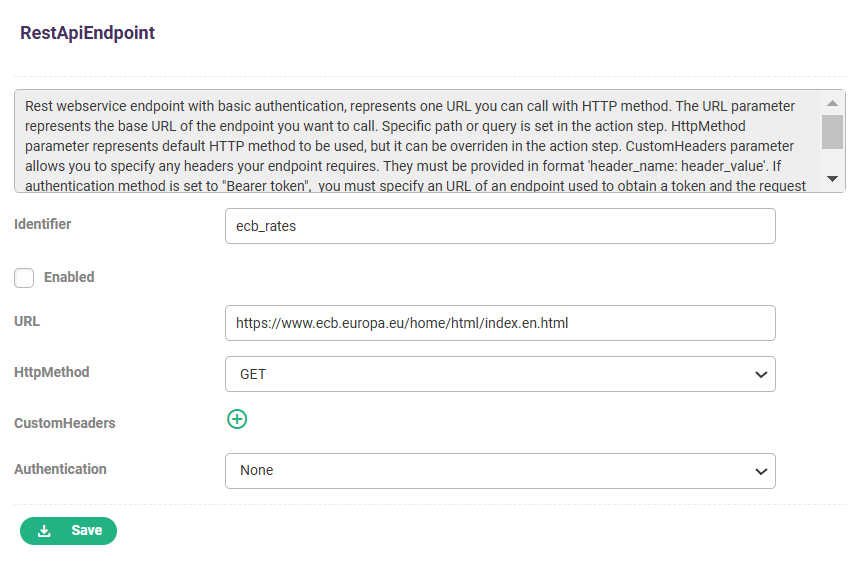

Adding a new source:

1 Go to the External Data Sources tab.

2. Click RestApiEndpoint in the upper left corner of the screen

3. Complete the required field:



ID - the unique name of the data source

Enable button - check to activate the data source

URL - address of the API you want to call

HttpMethod - the HTTP method you want to use (GET, POST, PUT, DELETE)

CustomHeaders - custom HTTP headers (optional)

Authentication - authentication method



None: no authentication

Basic: specify user and password

Bearer token: configure the access token

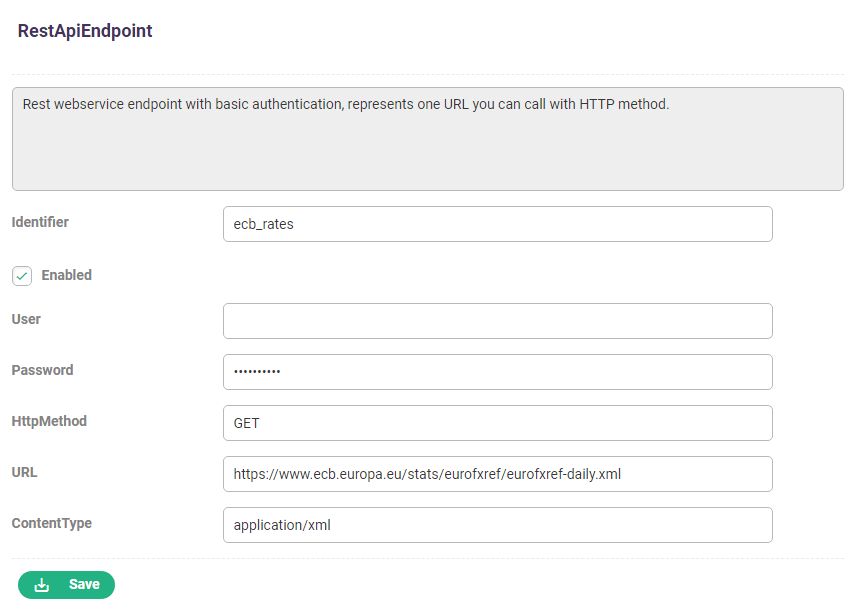

Authentication configuration



Authentication (None) there is no authentication



Basic authentication: Authentication by username and password



Bearer Token:  authentication through the obtained access token

TokenURL - the URL to obtain the token (e.g. url/api/token)

TokenField - location of the token in the API response (e.g. access_token)

BodyKeysValue - data needed to obtain the token (e.g. username, password, grant_type)

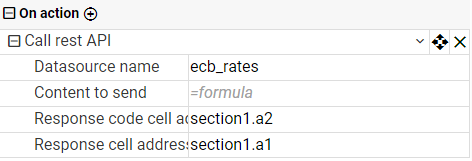

Action step

Where you can use action steps:

Workflow

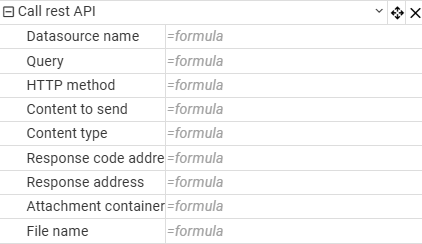

Parameters:

Datasource name: (type: Text) - the identifier of the configured external data source

Query: (type: Text) - the URL you want to call

HTTP method: (type: Text)- GET, POST, PUT, DELETE

Content to send: (type: Text)-applies to POST AND PUT methods. Enter the data in JSON/XML format or provide the address of the sheet cell where the data is stored.

Content type: (type: Text)-type of data sent in the request application/json or application/xml

Response code cell adress: (type: Text) -address of the cell where the HTTP response code will be returned

Response cell adress: (type: Text) -address of the editable cell in which the response returned by the external data source will appear

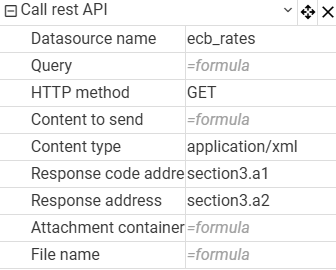

Action step: call rest API - GET method

The result of downloaded data from the European central bank's api:

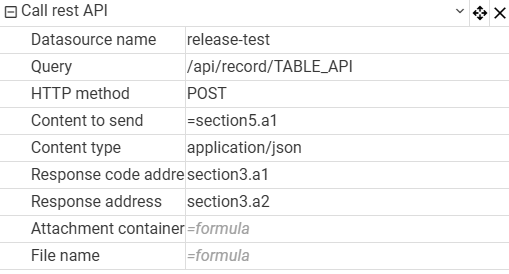

Action step: call rest API - POST method

The result of saving a record is a database

HTTP response code

The HTTP response code indicates the status of the request execution:

• 200 - success
• 400 - request error (e.g. missing required parameter)
• 500 - external server error

Remarks:

There may be multiple RestApiEndpoints defined on your site
