Setting auto width allows you to set a fixed size of a section in relation to the application screen. Depending on the setting, the section is from 1 to 6 parts separated area of the screen. If sections contained in one line together occupy more than 6 fields, the last section will be wrapped to the next line.
Examples:
- Both sections occupy an area no larger than the size of the screen.
occupies 4/6,
occupies 2/6
- The second section is not occupied because the sum of fields is 5 + 3 = 8 > 6. It will be folded under the first section situated to the left.

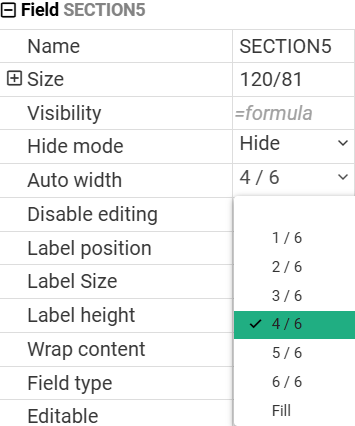

To set the width of the auto section, select it in the workspace designer and go to options:
See Sections layout article for more information
Fill

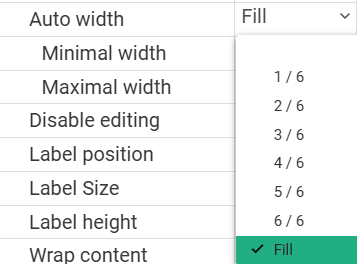

The new “fill” feature, available since version 2.3, allows you to dynamically adjust the width of a section in a row to better manage space, especially for sections with variable widths.
The “fill” option makes a section take up all the available space in the row. Multiple sections can be placed in a single line with the “fill” option enabled, which means that each section will adjust its width in proportion to the number of sections
In addition, if the auto width option is selected, new settings will appear - “minimal width” and “maximal width”. These parameters provide more control over the placement and fit of sections in the layout.
